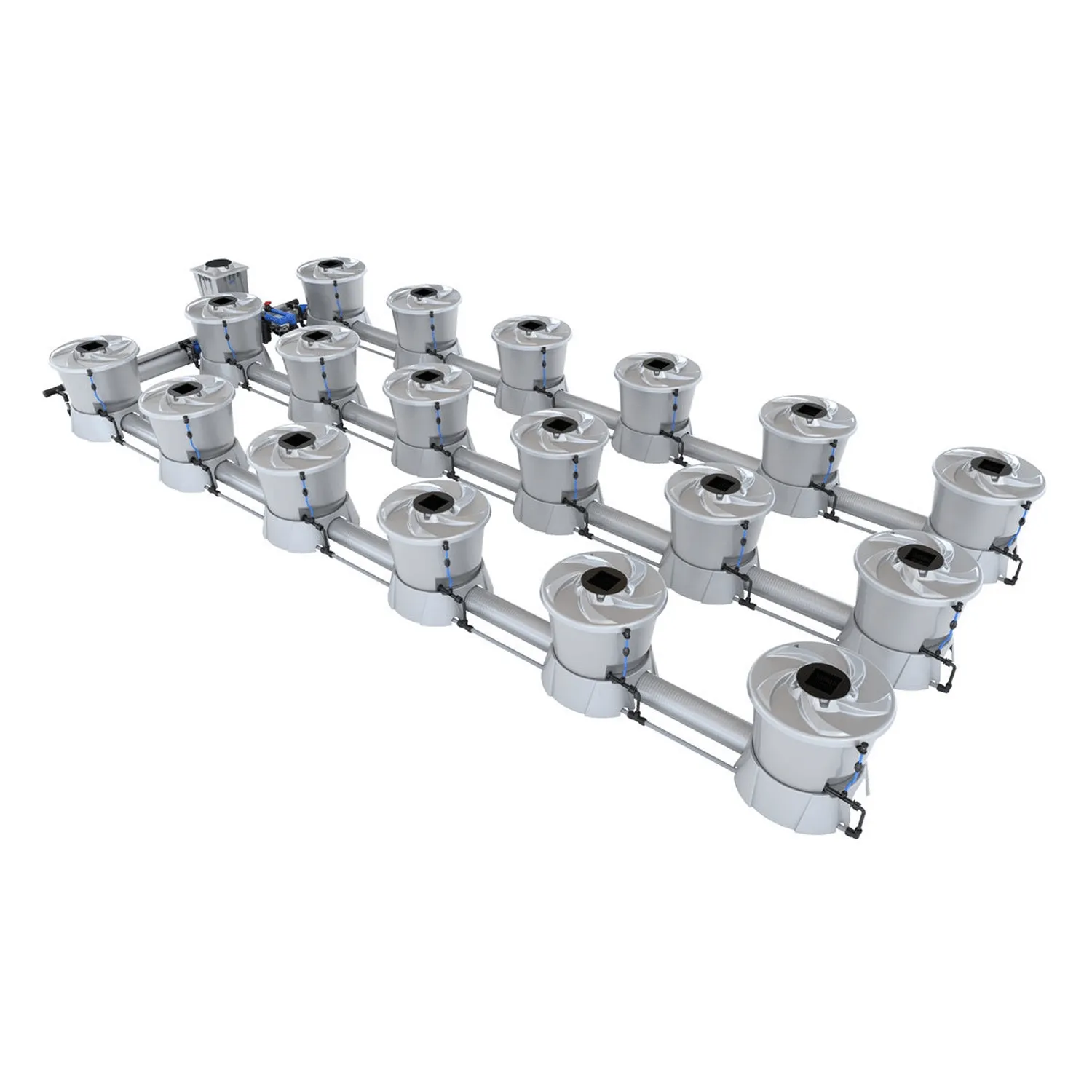

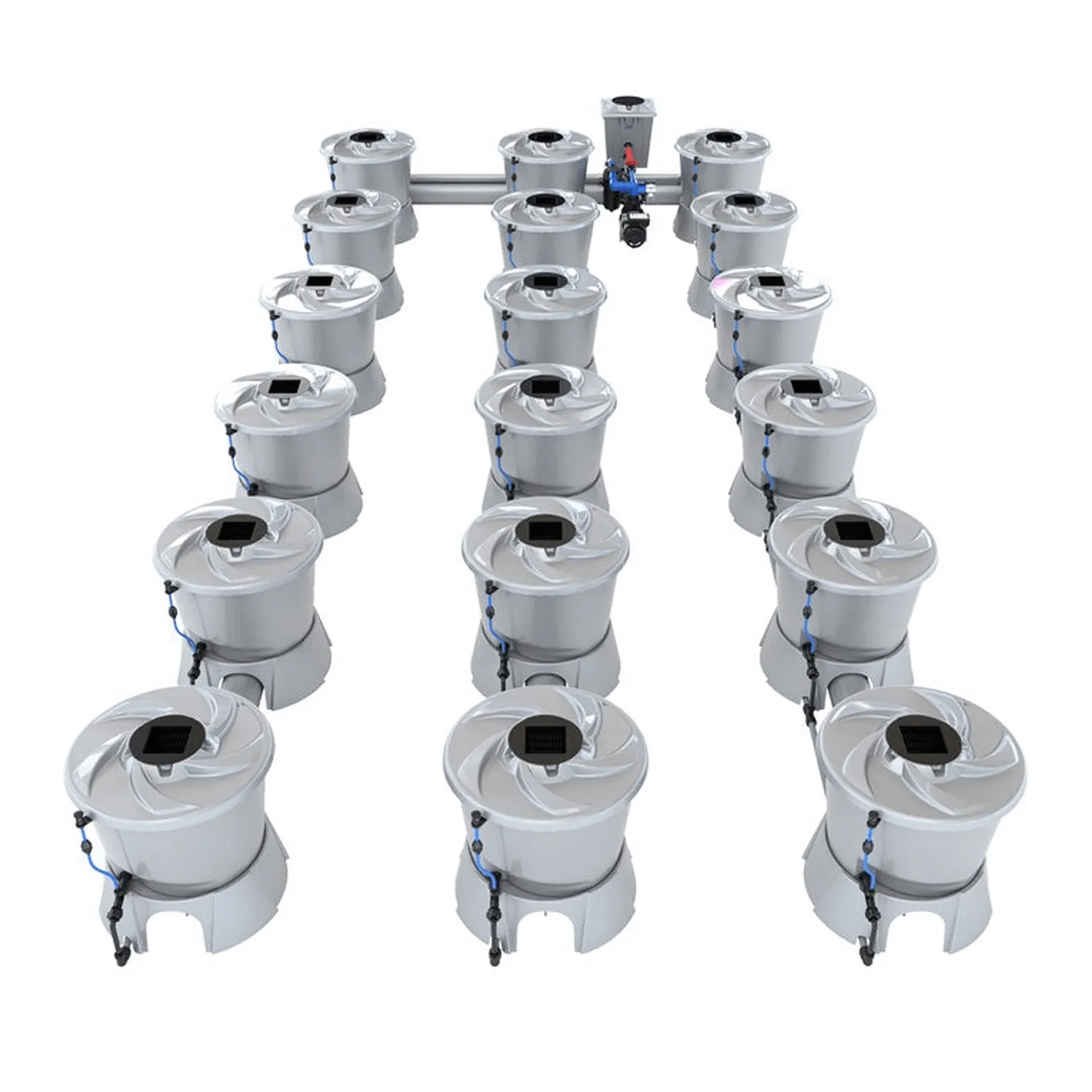

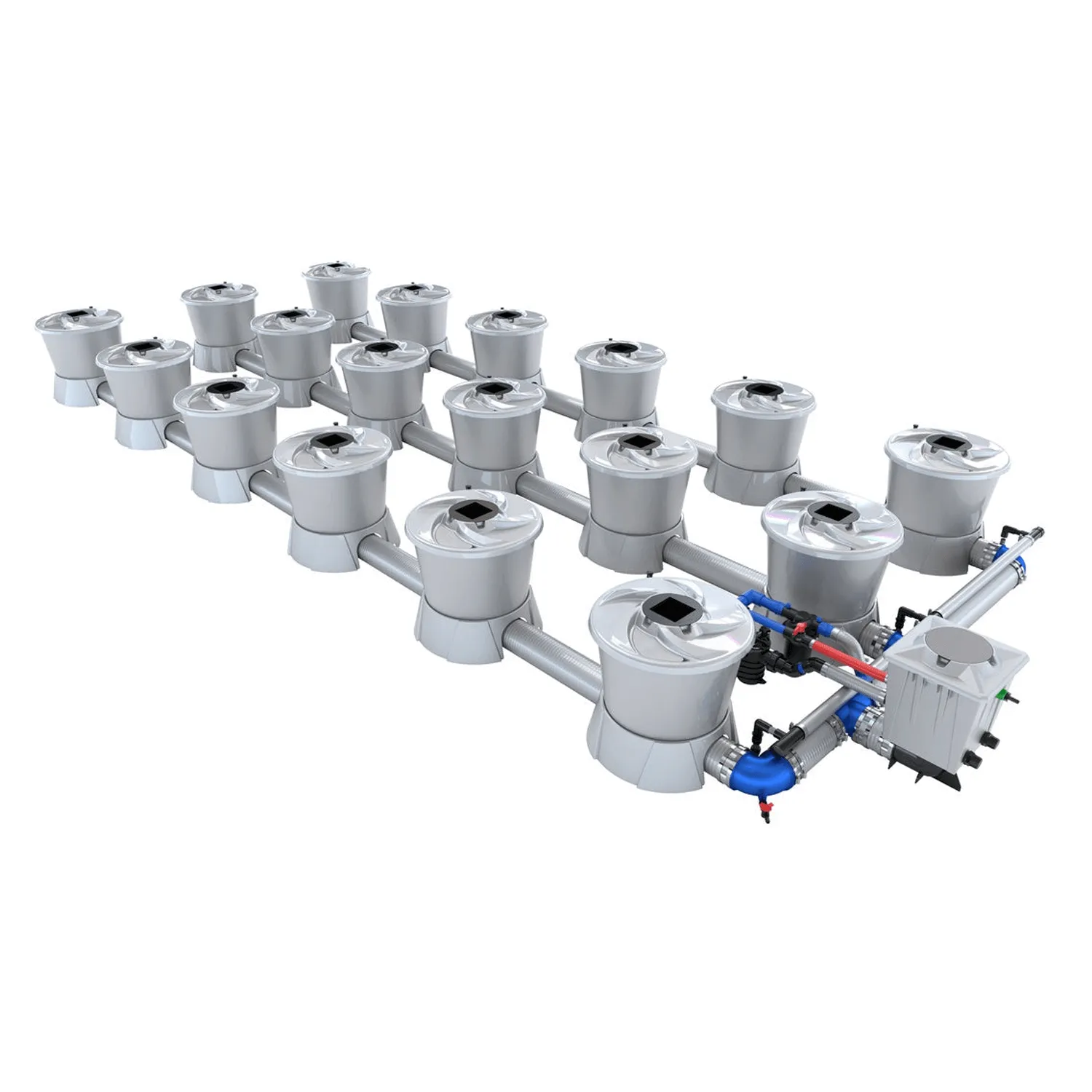

Name: ALIEN Hydroponics V-SYSTEM 18 Pot 3 Row Kit
SKU: 46425

Description

Direct nutrient distribution: The V-SYSTEM benefits from distributing nutrients directly to your plants.

Maximum oxygen saturation: Ensures optimum levels of oxygen are reaching your plants.

No air pump needed: This system is developed to need no external air pump.

No heat transferred: The design makes sure that no unnecessary heat is transferred to your plants.

Vortex fluid motion: The fluid moves in a vortex-like pattern, ensuring even distribution.

Naturally aspirated: The V-SYSTEM is naturally aspirated, enhancing its productivity.

Supports large plants: The system is designed to support the growth of large plants as well.

Pots and system completely drain: Pots and systems have been designed for complete drainage, preventing any waterlogging.

Prevents root clogging: The design is set to prevent any sort of root clogging that could hamper the growth of your plants.

Made in Britain: The V-SYSTEM is proudly made in Britain.

Key V-SYSTEM Features:

15 gallon (58L) V-POT: Gives sufficient space for steady growth.

Water fill line: A water fill line is included to control water levels.

Total-drainage bases: The bases are designed for total-drainage, preventing any stagnation.

Venturi injectors: The venturi injectors help in improving the airflow.

Inspection Covers: Easy-to-use covers for reviewing the growth process.

5" spiral tubing: An efficient spiral tubing for optimal growth conditions.

5" Dual-Flow™ fittings: Fitted with Dual-Flow system for maximizing efficiency.

Integrated filtration: The V-SYSTEM comes with an integrated filtration system that keeps your setup clean and free from any obstructions.

T304 Stainless clamps: These heavy-duty clamps ensure that everything stays together perfectly.

Heavy-duty components: The high-quality, heavy-duty components of the V-SYSTEM guarantee a longer lifespan and flawless operation.

Push-fit feed connections: These connections ensure the easiest compatibility with your existing setup.

JET-STREAM® Vortex™ pump: The system includes a phenomenal JET-STREAM® Vortex™ pump that ensures an even nutrient distribution and maximum oxygen saturation without the need of an air pump.

Specifications

Product Name: V-SYSTEM 18 Pot 3 Row Kit

Technical Information

Number of pots: 18

Number of rows: 3

Kit total fluid volume: 293.8 gallons (1112 L)

Minimum assembled size (can space pots more widely for a larger footprint):

Length: 12' 1.3" (145.3 inches / 3690 mm)

Width: 5' 9.3" (69.3 inches / 1760 mm)

Water Pump Included with the Kit:

Model: V-SYSTEM Vortex Water Pump 1100W 120V 17700 l/h

Wattage: 1100 watts

Flow Rate: 4676 gal/hr (17700 L/hr)

Recommended water chiller minimum capacity: 528 gallons (2000 L)

Data Sheet

Download the instruction manual:

Download the technical drawing:

Bulk Discount

Buy 2 or more of this item and receive 5% off!

Discount will be automatically applied at checkout.

Kit Contents

The V-SYSTEM 18 Pot 3 Row Kit Includes:

1 x V-SYSTEM Vortex Water Pump 1100W 120V 17700 l/h

18 x V-Pot 58L

18 x V-Pot Base

18 x V-Pot Lid

18 x V-Pot Lid Inspection Cover

18 x Square Net Pot

18 x V-Pot Clip

18 x Air Filter for V-SYSTEM Venturi, 6mm

18 x Silencer for Venturi

18 x Venturi Fitting

18 x Venturi Air Inlet Pipe 6mm Blue (2X 4")

18 x Venturi Inlet Fitting for 22mm Pipe

19 x Nut 5"

19 x Washer 5" Green Silicone

44 x 5" Stainless Steel Clamp

1 x Distribution Tee 40mm

3 x DM Push-Fit Elbow 22-15mm V-SYSTEM

3 x DM Push-Fit Elbow 22mm V-SYSTEM

15 x DM Push-Fit Tee 22-15mm V-SYSTEM

1 x 1/2" Drain Cap Fitting

1 x Drain Tap 1/2"-16mm Barb

2 x Elbow 5" Barbed with Drain Point

4 x Elbow 5" Threaded Dual-Flow

1 x Filter Manifold Complete 40mm

1 x Float Valve

1 x V-SYSTEM Header Pot 20L 40mm

1 x Silver Lid

1 x Header Pot Blank

1 x Hosetail 16mm-3/4" Female Green

18 x Pipe 22mm Gray Rigid 1 Meter - Venturi Feed

1 x Pipe 32mm Red 1 Meter Spiral

4 x Pipe 40mm Silver 1 Meter Spiral

19 x Pipe 5" Silver Spiral 80cm

2 x Tee 5" Barbed

15 x Tee Threaded 5" Dual-Flow

2 x Threaded Tank Connector 1"

1 x Vortex Pump Inlet Manifold 40mm Short

2 x 1" Cap for Chiller Connections

1 x Tank Connector Straight 32mm

1 x Tank Connector Straight 40mm

1 x Terminal Manifold Left 40mm

1 x Terminal Manifold Center 40mm

1 x Terminal Manifold Right 40mm

42 x 22mm Insert for 22mm Rigid Pipe

2 x Clamp Size 2

10 x Clamp Size 3

1 x 8mm Screwdriver for 5" Clamp

1 x Wrench 5"

1 x Wrench for Float Valve

1 x 8mm Socket for 5" Clamp

1 x Pipe Cutter 50mm

5 x Silicone Grease - Food Grade
